Swageless Stainless Wire Balustrading Kit MBP

Description

Where would you normally use Swageless Stainless Wire Balustrade Kit MBP?
For 3.2mm cable balustrading between hollow metal posts. (Not suitable for timber posts)
This kit can be used for horizontal balustrade and/or angled balustrade.

What parts make up the kit?
1 x SSW076XMB (M6 Swageless Terminal Right Hand Thread)
1 x SSW077XMB (M6 Terminal Left Hand Thread)

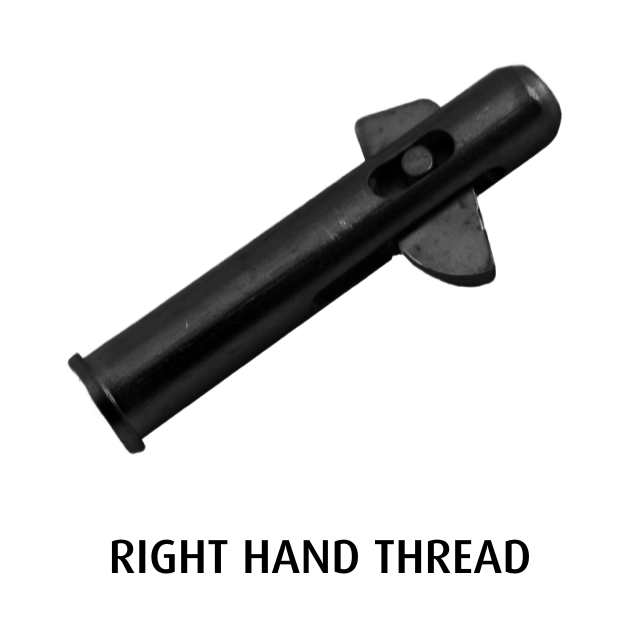

1 x SSW045XMB (M6 Flip Lock Connector Right Hand Thread)

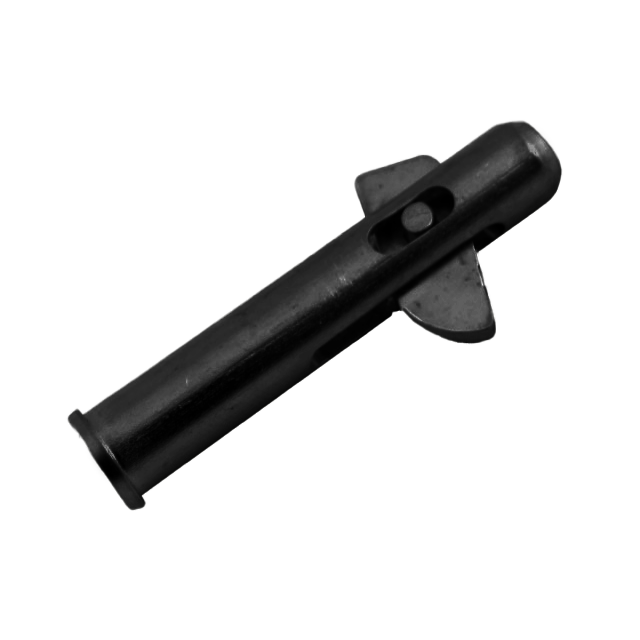

1 x SSW046XMB (M6 Flip Lock Connector Right Hand Thread)

What are the fittings made out of?
Black 316 Stainless Steel, which means they can be used both in external and internal applications.

How do I fasten the cable to the fittings?
The 3.2mm (1x19 or 7x7) wire cable goes into the open end of each fitting. The unique swageless mechanism on the end of the fitting is screwed on until it can't be tightened anymore which results in the wire being securely held in place.
The wire can only be removed with the use of the release key (SSW074-6).

Which wire cable rope is best suited?
The fittings will work only with 3.2mm stainless wire cable rope.
1 x 19 configuration for the cable is the best fit, but 7 x 7 and 7 x 19 will also work.

Which tools do I need?
The SSW056-6 (M6 Terminal Right Hand Thread) and SSW070-6 (M6 Terminal Left Hand Thread) require the use of the IF120X (Hydraulic Swager) to fasten the fitting to the wire.
Other tools that will be handy to complete the job are IF122X (Wire Cutter) and two of the IF133X (Spanner Tensioner).

How does it get fixed to a metal post?
For horizontal balustrade; drill an 8.5mm hole into the wall of the post, then insert the fitting. The flip section will then engage and will stop the fitting from pulling out of the post.
For angled balustrade (such as on a staircase); drill a 10.0mm hole into the wall of the post, then insert the fitting. The flip section will then engage and will stop the fitting from pulling out of the post.

Can it be used for exterior applications?
As it is 316 Stainless Steel it is more than suitable to be used inside or outside.
